Artlantis 9.5.2.32853 Mac

Artlantis is a 3D rendering and animation application that turns CAD and modeling project files into high-resolution stills, walkthrough videos, and VR panoramas. It was built to slot into workflows fed by ArchiCAD, VectorWorks, SketchUp, AutoCAD, and Arc+, exchanging data directly with those tools for post-production rendering.

Animating a courtyard from SketchUp model to client clip

Imagine you have a SketchUp model of a courtyard pavilion and you need a 30-second client animation. You bring the model into Artlantis, pick a daylight shader from the built-in material collection, and swap one wall surface with a site photo dragged from the desktop. In the animation palette, you place a camera at the entry gate, plot a curved motion path that sweeps through the seating area, and set a second keyframe near the water feature. A draft preview plays back in the viewport; once the timing looks right, you queue the full-quality render and let it run.

Daylight stills, motion paths, and VR panoramas

• Architectural stills with realistic daylight and artificial light mixing
• Short animation clips using editable camera motion paths
• VR-ready 360° panoramas for client walkthroughs
• Reusing site photos as custom surface materials
• Projects that already live in ArchiCAD, VectorWorks, SketchUp, or AutoCAD

Development halted, runs via Rosetta only

• Abvent has ceased R&D and distribution, so the app is no longer sold or updated
• It is a 64-bit Intel binary; Apple Silicon Macs run it through Rosetta only
• It remains functional on macOS 10.13 and later

Option-drag materials to skip the preview panel

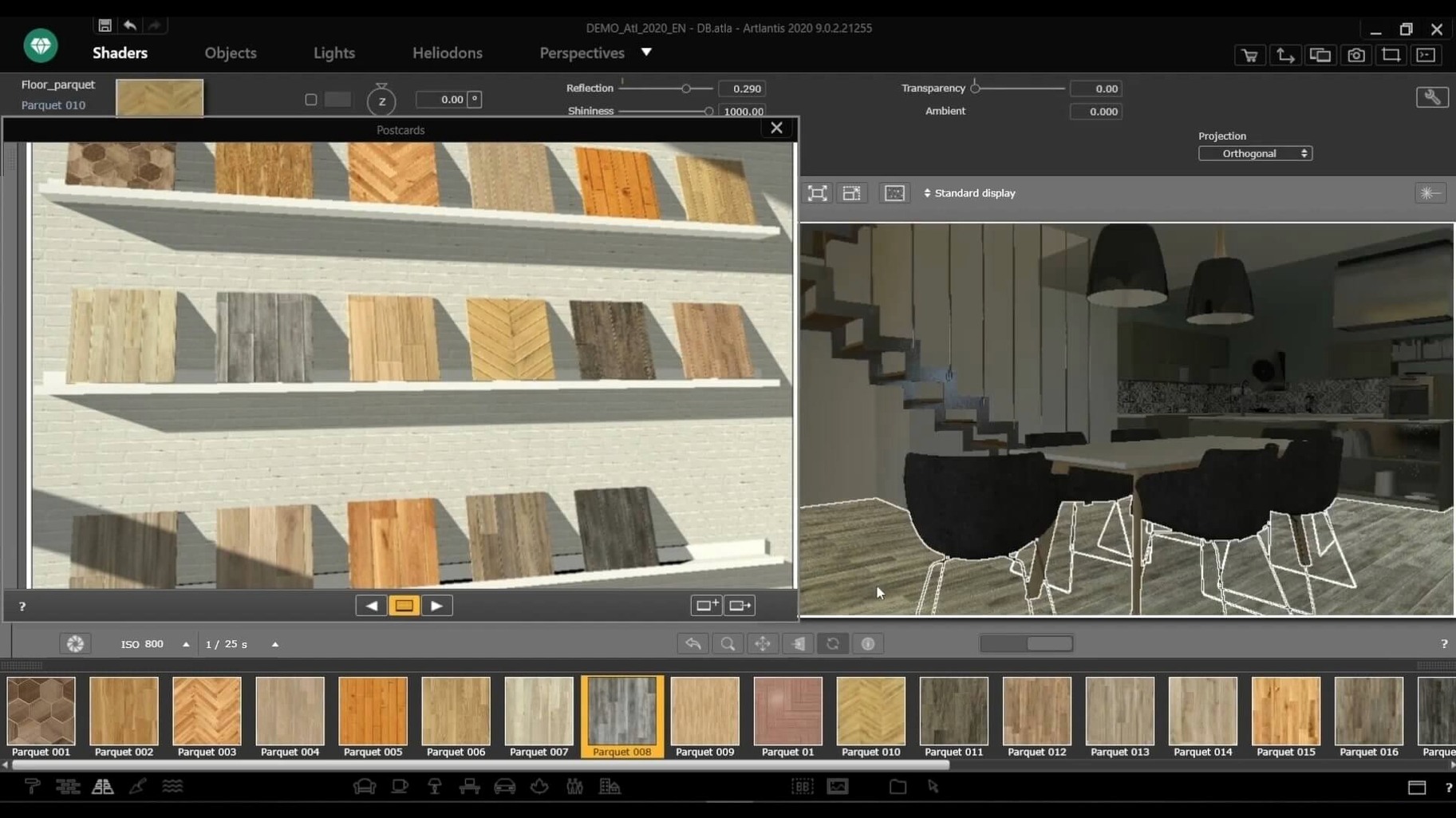

Several features sit just below the surface and speed up repetitive work once you spot them. Dragging a material from the catalog onto a surface while holding the Option key copies the material without opening the preview panel — a quick way to dress multiple walls with the same brick without extra clicks. In the viewport, double-clicking any light source selects it in the heliodon or artificial lights list, saving a trip through the scene hierarchy when adjusting shadow angles or intensity.

The shader editor includes a right-click duplicate command that is easy to miss. Right-click a custom shader thumbnail and choose "Duplicate" to fork a variation; tweak the copy's roughness or bump depth without rebuilding the base texture. Another shortcut: the number keys 1 through 5 cycle through the viewport display modes — wireframe, hidden line, shaded, draft render, and full preview. Switching to wireframe before placing a camera keyframe often helps when the scene gets heavy and the shaded view lags.

Users who grabbed an artlantis 2021 download late in the product's life may also find the batch rendering panel tucked under the render menu. It queues multiple viewpoints without tying up the interface, useful for overnight still-image exports when a project needs five or six fixed-camera shots.

Fixing washed-out CAD textures with UV mapping

Materials sometimes appear washed out after import from a CAD file, especially when the original model uses embedded textures with mismatched scale. The fix lives in the UV mapping controls inside the texture inspector. Switch the mapping from "Automatic" to "Flat" or "Cubic," then scale the texture manually with the X and Y sliders. A quick test render of a small region confirms the grain direction before the full pass.

Another frequent headache involves missing geometry after an export from SketchUp. The cause is usually nested components that Artlantis reads as separate, unlinked objects. The workaround before export is to explode deeply nested groups in SketchUp, or, if the file has already arrived, use the object list panel to locate the scattered parts and re-parent them under a single group inside Artlantis. This keeps the scene hierarchy manageable when assigning materials later.

Users who installed from an Artlantis torrent or an Artlantis Mac torrent occasionally report that the application quits on launch under recent macOS versions. In most cases, the issue traces back to Gatekeeper quarantine flags. The standard remedy is to remove the quarantine attribute via Terminal with xattr -d com.apple.quarantine on the application bundle, then restart the Mac and launch again. Apple Silicon users should also confirm that Rosetta 2 is installed, because the 64-bit Intel binary requires it.

Render times spike when a scene mixes several artificial light sources with high sample counts and a transparent material in the same frame. The practical fix is to reduce light samples on fill lights — keep the high sample count on a single key light and drop secondary sources to 64 or 128 samples. The visual difference in a final still is often negligible, while the render clock drops noticeably.

Connections to other apps and macOS

Artlantis slots into a multi-app pipeline without a dedicated export step for several CAD tools. With ArchiCAD and VectorWorks, the direct-link plug-in sends the model straight into Artlantis while preserving materials and camera positions. Changes made later in the CAD file update in Artlantis through a merge command, so iterative tweaks — a window moved, a wall height adjusted — do not force a full re-import from scratch.

For formats outside the direct-link family, the import function reads DXF, DWG, and 3DS files. The conversion handles layers and object names reliably, though materials rarely survive the transfer; they need reassignment inside Artlantis. Users who build base models in Rhino or Fusion 360 often export to DWG as a bridge format for this reason.

On the output side, QuickTime VR panoramas integrate with the macOS Quick Look framework. A rendered panorama saved as a QTVR file opens in Finder with a single tap of the spacebar, letting clients spin through a space without launching a separate viewer. For stills, the post-processing panel's color table adjustments align with the system-wide ColorSync profile, so what you see in the Artlantis viewport should match prints from Preview or a layout in Pages — provided the display is calibrated.

Animation exports land as standard movie files that trim smoothly in QuickTime Player or iMovie. A common workflow is to render drafts at half resolution from Artlantis, assemble the edit in iMovie to lock timing, then replace clips with full-resolution renders once the client approves the cut.

• macOS 10.13 or later
• Intel processor (64-bit); Apple Silicon via Rosetta
