Deep Glow 1.6 Mac

Deep Glow is a GPU-accelerated glow plug-in for Adobe After Effects that renders in non-linear color spaces and supports both Apple Silicon and Intel 64-bit Macs.

Set the color foundation

The plug-in is built to operate in non-linear color spaces, which matches how most modern motion-graphics projects are set up. Working in the correct space keeps highlights predictable and avoids the blown-out clipping that linear glow tools can introduce.

Dial in the glow character

Beyond a smooth neon halo, Deep Glow can push toward grainier, more stylized results. Its compositing controls let you refine how the glow sits against the source layer without leaving After Effects for a separate composite.

Keep it fast on any Mac

GPU acceleration is built in, and the plug-in ships as a universal binary for ARM and x86 64-bit architectures. That gives native performance whether you are on an M-series MacBook Pro or an older Intel tower.

Double-click to reset a runaway glow instantly

Deep Glow packs several shortcuts that do not advertise themselves in the effects panel. Double-clicking the effect name in the Effect Controls window resets every parameter to its default — a quick escape when a glow has wandered too far into overblown territory. Right-clicking any slider snaps it back to its starting value without affecting other settings.

The downsampling control is one of the most useful controls that new users overlook. Set to 2x or 4x by default, it renders the glow at a reduced resolution internally before scaling it back up. On complex comps with multiple glow layers, dropping the quality temporarily lets you scrub the timeline without stuttering, then bump it back for final render. The difference at 4x is nearly invisible in most broadcast and web outputs but cuts render times noticeably.

Holding Option while dragging the radius slider displays a matte view of the glow source — a grayscale preview that shows exactly which luminance values are triggering the effect. Motion designers who need precise edge control use this constantly to dial out unwanted glow on semi-transparent areas or fine-detail regions like hair and thin typography.

Another hidden behavior: the compositing mode dropdown includes several blend methods that mimic common After Effects transfer modes but apply them internally, before the glow composite hits the layer stack. This avoids the need for duplicate pre-comps when you want a glow that adds to the source but screens against the background — a workflow that used to require three layers and a set matte.

Match the color space to your deliverable first

Two default settings are worth adjusting the moment you apply Deep Glow. The color space parameter defaults to the project working space, but switching it explicitly to match your deliverable — Rec.709 for broadcast, sRGB for web, or P3 for HDR work — prevents subtle gamma mismatches that show up as grayish halos on client monitors.

The quality slider ships at a middle position. For final renders, push it to maximum and enable anti-aliasing on the glow edge. The plug-in uses a temporal sampling approach that accumulates samples over multiple frames when the quality is set high, which cleans up flickering on moving glows far better than cranking After Effects' own motion blur. On still frames or slow-moving titles, you can leave quality lower and save render time without visible loss.

Turn on GPU acceleration in the plug-in preferences — it is not always auto-detected correctly on multi-GPU setups like a Mac Pro with an eGPU attached. The plug-in will use whichever GPU After Effects is targeting, but forcing it in the plug-in's own dropdown avoids the occasional fallback to software rendering that produces identical results at a fraction of the speed.

The inverse-square falloff toggle is on by default and models real light behavior — intensity dropping with the square of distance. For purely decorative glows on logos or UI elements, switching to a linear or custom curve falloff often looks cleaner and is easier to match across multiple layers. The custom curve editor is a small graph tucked behind a disclosure triangle; dragging its midpoint changes the glow's spread character more dramatically than tweaking radius and intensity alone.

Applying glow only to 3D object mattes from C4D or Blender

Deep Glow integrates naturally into a compositing pipeline that extends beyond After Effects. Motion designers who build 3D elements in Cinema 4D or Blender often render object ID mattes as separate passes, then apply Deep Glow only to specific surfaces — a car's taillight, a neon sign, a sci-fi hologram — by using the luminance of that pass as the glow source. The plug-in's source threshold control makes it straightforward to isolate the exact brightness range without pre-keying the matte.

On the macOS side, Deep Glow respects After Effects' Metal rendering backend introduced in recent CC releases. That translates to smoother viewport feedback when scrubbing the timeline on M-series Macs, where the unified memory architecture lets the GPU and CPU share texture data without copying frames back and forth. The plug-in also responds to macOS display color profiles; if you are grading on an XDR display set to a HDR reference mode, the glow preview reflects that wider luminance range rather than clamping to SDR white.

For sound-design-driven animation, many designers link Deep Glow's intensity to audio keyframes generated by After Effects' Convert Audio to Keyframes function. Patching the intensity slider to the audio amplitude channel produces a glow that pulses with a music track or voiceover, a technique used frequently in concert visuals and podcast title sequences. The plug-in's low latency under GPU acceleration keeps the expression evaluation fast enough for real-time preview at quarter resolution.

The rendered glow can be exported as a standalone pass via After Effects' render queue or Media Encoder, then handed off to DaVinci Resolve for final grading. Because Deep Glow writes its output in the project working color space rather than baking a display transform, colorists have the full dynamic range to pull the glow up or down in the grade without re-rendering from After Effects.

Linear blowout on bright sources versus Deep Glow’s approach

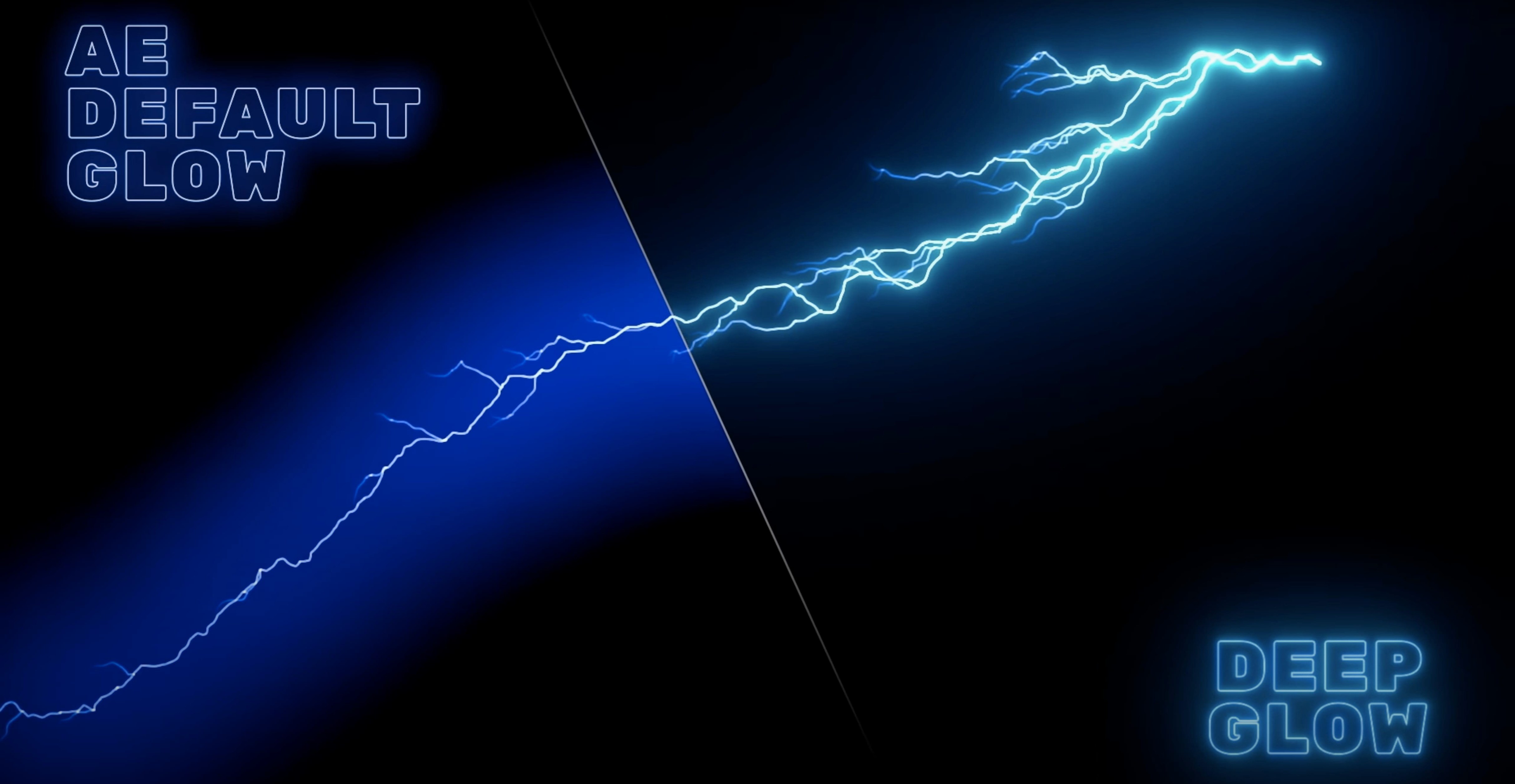

After Effects ships with a built-in Glow effect that handles basic tasks — a single radius, a threshold, and two glow colors. It works in a linear fashion that tends to blow out highlights on bright source layers, and it lacks any downsampling or quality controls. Designers who need a quick, one-click glow on a button or icon may find it sufficient; anyone compositing glows into dark scenes with specular highlights will quickly hit its limits.

Red Giant's Optical Glow is the most direct competitor. It also emphasizes real-world light falloff and ships with a larger preset library than Deep Glow. Optical Glow's strength is its speed on simple setups and its tight integration with the Red Giant universe. Where Deep Glow pulls ahead is in the granularity of its compositing controls — the ability to adjust bloom, glare, and core glow as separate internal layers without duplicating the effect. For motion designers who build complex, multi-layered glow treatments on a single layer, Deep Glow saves a lot of pre-comp nesting.

Starglow by Maxon, part of the Trapcode suite, takes a different approach entirely. It generates directional light streaks from bright points, with controls for streak count, length, and color mapping. Starglow excels at anamorphic lens flares and sci-fi light trails but is not designed for the diffuse, volumetric glow that Deep Glow produces. The two plug-ins are complementary rather than competitive — many After Effects artists keep both installed and reach for Starglow when they need directional energy and Deep Glow when they need soft luminance wrap.

Reduced VRAM pressure on Intel Macs with discrete graphics

Version 1.6 brought under-the-hood changes that affect daily workflow more than a feature list suggests. The GPU pipeline was reworked to reduce VRAM pressure on Intel Macs with discrete graphics, which means fewer "out of memory" errors when stacking multiple Deep Glow instances in a single comp. On Apple Silicon, the plug-in now takes advantage of the Media Engine's hardware acceleration for texture uploads, cutting the time between clicking "apply" and seeing a result on complex 4K timelines.

The 1.6.x point releases — 1.6.3 through 1.6.9 — focused on stability fixes and compatibility with newer After Effects builds. Version 1.6.6 resolved a long-standing bug where the plug-in would render black frames on the first frame of a composition when GPU acceleration was enabled alongside certain third-party codecs. For designers delivering daily client revisions, that fix alone eliminated a need to spot-check every export.

Earlier in the 1.x cycle, the grain controls were expanded beyond a simple intensity slider. The current version lets you size and softness-match the grain independently of the glow radius, which means a gritty, 16mm-film-style glow on a title card no longer forces the glow itself to become harsh or small. This change shifted Deep Glow from a one-trick neon tool toward something that can mimic photochemical halation and analog light-bleed effects — useful for period-piece title sequences and music video looks.

Deep Glow 1.6 is now listed among the previous versions in the release archive.

• macOS (version not specified by the developer)
• Apple Silicon (ARM 64-bit) or Intel (x86 64-bit)
• Adobe After Effects
