GraphPad Prism 11.1.0 Mac

When a lab posts six sets of dose-response data and expects publishable figures by morning, the last thing anyone wants to discover is that the analysis software won't launch. Prism is built for that kind of deadline, and the current release runs on a wide range of Macs.

Prism needs macOS 11 or later on Intel or Apple Silicon

Prism 11.1.0 requires macOS 11 or later. Both Intel 64-bit and Apple Silicon Macs are supported natively.

Open a recent project file

The August 19, 2026 release carries more than 60 bug fixes, so older project files load without surprises. Variable selection inside t tests and nonlinear regression dialogs has been streamlined in this update.

Build a new graph from scratch

Multiple variables tables now get their own graph types, and categorical levels can be reordered directly in the data sheet. The statistical guidance tools help choose the right test and walk through the output.

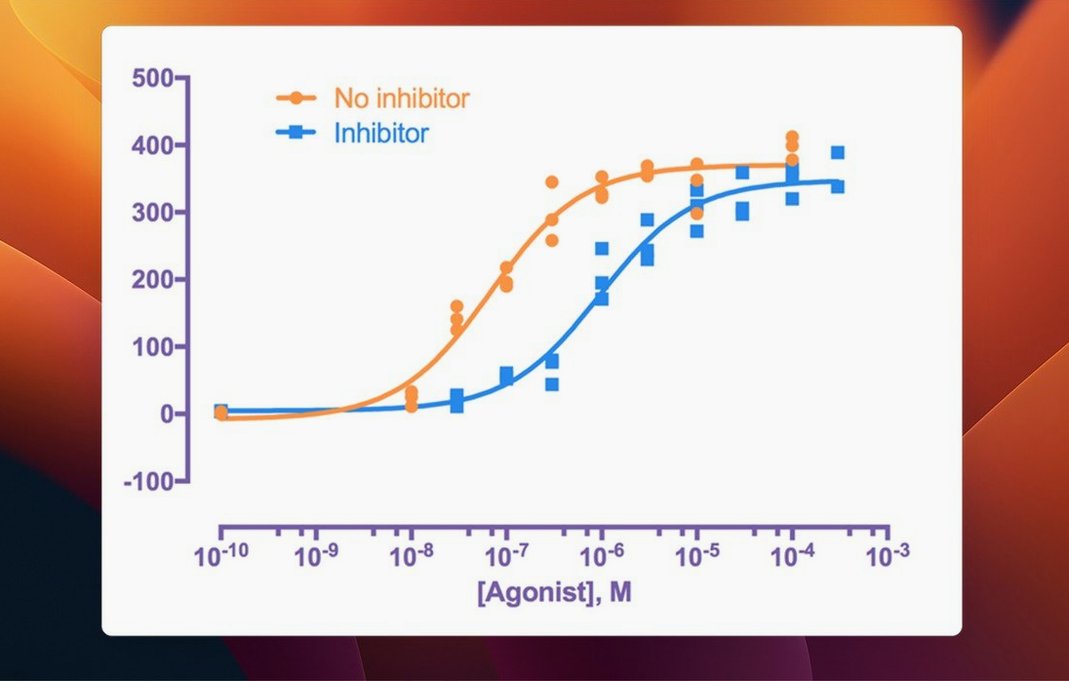

Walk a dose-response curve from raw plate reader output to a finished graph

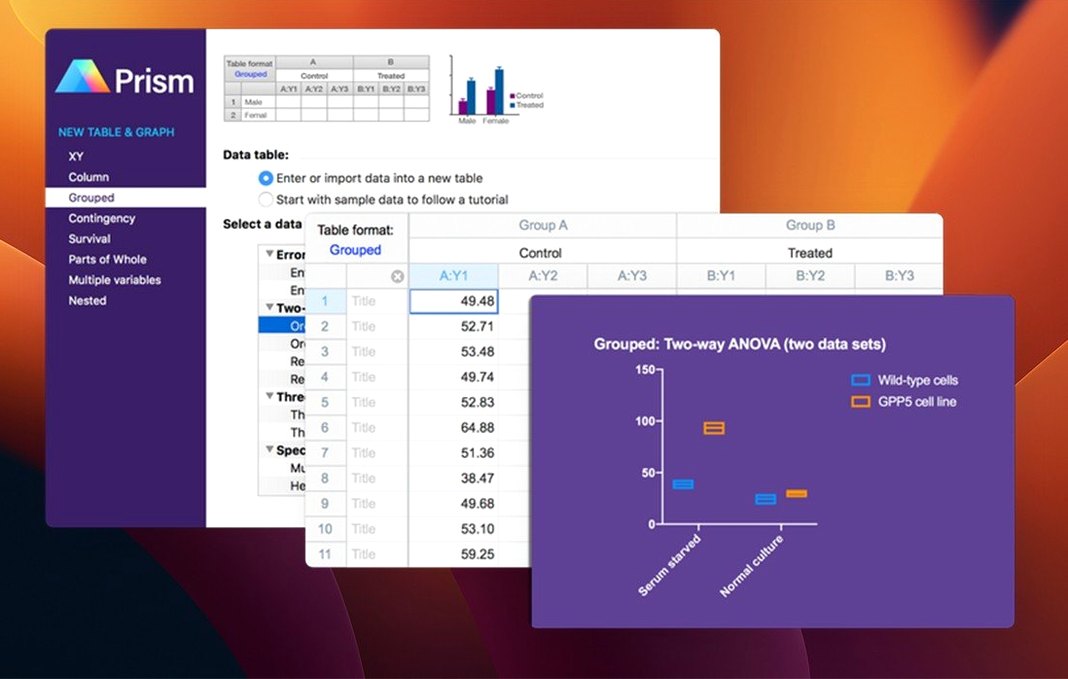

Most of the labs I've watched work the same way: a plate reader spits out a CSV, someone pastes it into an XY table, and five minutes later they're staring at a sigmoid curve. The cleanest path through Prism starts with the Welcome dialog — choose XY, then pick the Dose-response — Special tutorial data set if you want a quick look before committing your own numbers. Paste the concentrations into X and the mean fluorescence values into Y. Group columns hold the replicates; Prism automatically labels them Group A, Group B unless you rename the column headers.

With the data in place, click the Analyze button. Under XY analyses, select Nonlinear regression (curve fit). The parameters dialog opens pre-populated with the log(agonist) vs. response model, but the streamlined variable selection in version 11.1.0 means you can jump straight to the Compare tab and tick which data sets to fit without hunting through nested menus. If you're comparing three compounds, select all three and check Compare the best-fit values of selected parameters — Prism runs an extra-sum-of-squares F test in the same pass.

The results sheet lands on the Global goodness of fit table. Scroll past that to the Best-fit values section and grab the EC50 and Hill slope for each curve. Then switch to the graph. A scatter plot with fitted curves appears automatically. Double-click the axes to set log scale on X, and use the Format Graph dialog to drop the legend into the upper-left corner — journals prefer it there. Export as a 300 dpi TIFF from the File > Export menu, and you're done. The whole sequence takes less than ten minutes once you've done it twice.

Who leans hardest on Prism, and why

Pharmacologists run more dose-response curves than anyone, and they stay with Prism because the nonlinear regression engine handles four-parameter logistic fits without requiring R code. The interpolate unknowns from standard curve option under the same analysis menu means an ELISA plate gets analyzed in the same session as the binding assay that preceded it.

Neuroscientists tend to live in the column statistics tools — repeated-measures ANOVA with Geisser-Greenhouse correction shows up in almost every paper, and the analysis checklists Prism generates are detailed enough that a reviewer won't ask for the raw F values. Clinical researchers lean on the survival analysis module; the streamlined parameter dialog in the simple survival analysis section of 11.1.0 cuts a few clicks when comparing Kaplan-Meier curves across treatment arms.

Graduate students get the most out of the statistical guidance links that sit in the corner of every analysis dialog. Clicking through the decision tree — "compare two groups," "nonparametric test" — lands on the Mann-Whitney output with plain-English interpretations that don't assume a stats degree. Postdocs I've spoken with say they keep a Prism file open alongside a manuscript draft, copying formatted results tables straight into the text.

Where Prism fits into the larger toolchain

No program works in a vacuum. Prism reads CSV and Excel files without complaint, so the typical pipeline is plate reader software exporting to a shared folder, then Prism pulling the file in. On a Mac, the Services menu lets you highlight numbers in a Numbers spreadsheet, right-click, and send them to a new Prism table via a Shortcut — not advertised heavily, but useful once it's set up.

Graphs go out as TIFF or PDF and land in Illustrator or Affinity Designer for final layout. Prism's PDF export respects the vector nature of every axis tick and data point, so a journal art department won't send it back. For collaborative labs, the .pzfx project format keeps analyses, graphs, and layouts bundled; Dropbox or a shared network volume handles versioning on the Mac side. The macOS Quick Look integration means pressing the space bar on a .pzfx file in Finder shows the last-viewed graph sheet without launching the full app.

Browser-based license activation, new in 11.1.0, is aimed at institutional IT groups that run single sign-on. If your university uses Microsoft Entra ID for authentication, the activation flow now hands off to the system browser instead of asking for a serial number inside the app — a small shift that removes a recurring support ticket for lab managers.

Small conveniences that save real time

The Change menu is easy to overlook. Selecting Change > Data on Graph when a graph window is active brings up a floating sheet where you can swap data sets without rebuilding the figure. If a reviewer asks to see the same bar chart with a different treatment group, it's two clicks instead of starting over.

Holding the Option key while dragging a data point in an XY graph nudges it by one unit in the coordinate space — faster than retyping the raw number when a single replicate is off. The Magic wand tool in the toolbar auto-adjusts axis ranges to fit the visible data, which matters after you've zoomed into an outlier region and want to reset without opening the Format Axes dialog. On the analysis side, the Repeat Analysis command (Command-Y) reapplies the last analysis to a new data set with identical parameters — useful when you've run the same unpaired t-test on eight readouts in a row.

Version 11.1.0 adds graph types for multiple variables tables, categorical level ordering for those data tables, and a streamlined variable selection step inside several analysis dialogs.

• macOS 11 or later
• Apple Silicon or Intel 64-bit processor
• English interface
