QLab 5.6.3 Mac

Running a show with dozens of interlocking cues leaves little room for a misstep in the patch. QLab 5.6.3 is the latest version of Figure 53's multimedia playback and control software for macOS, and it sharpens the feedback for lighting designers who build complex instrument setups.

• Light definition warnings. Rows in the Light Library and Light Definition editor now display a distinct color when an instrument definition is misconfigured, making faults visible before a cue fires.

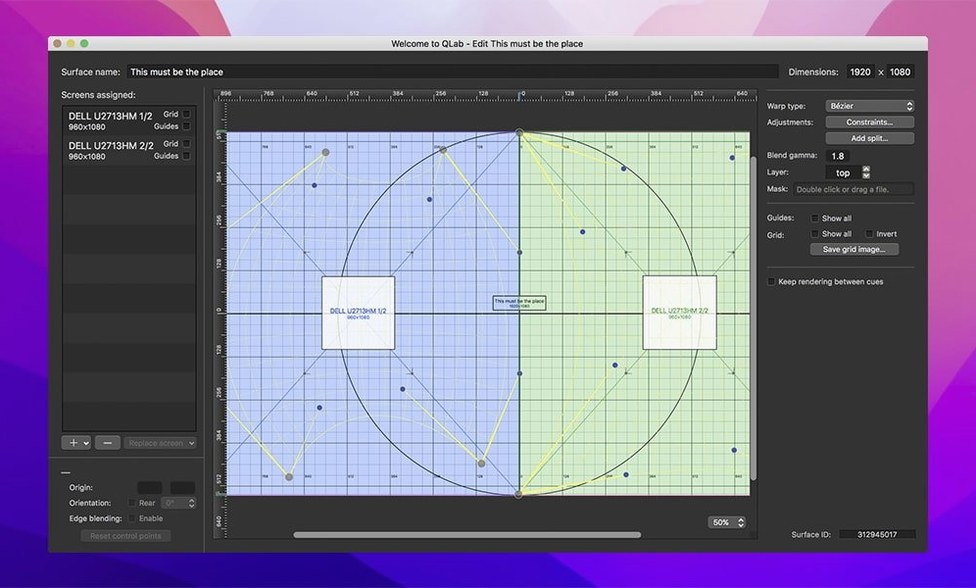

• Projector geometry. Keystone correction and corner pinning allow precise alignment of video on irregular surfaces, while new controls let an operator reverse or center the image on the projector.
• Expanded audio routing. The software supports up to 48 discrete audio outputs and 24 audio inputs for installations and venues with dense speaker configurations.
• Live video capture. External feeds from Blackmagic devices and other sources can be brought directly into the cue stack, treated as a live surface for mapping and effects.

These features sit alongside the existing undo system, built-in audio and video faders, and title overlays, giving experienced operators a deep toolkit for shaping a show's timing and look.

Sharing a laptop for email and a show file

Most people poking around for a show-control tool have the same handful of worries. The big one is whether QLab needs a dedicated machine or can share a laptop with email and a browser. In practice, a show file that runs fine on an M1 MacBook Air during tech week might glitch if the machine decides to index Spotlight mid-performance. Nobody from Figure 53 says you need a separate Mac, but every working technician who runs a serious cue stack keeps the machine off the internet during the show and quits everything else. The software isn't picky about hardware, but live playback is unforgiving with background processes.

Another recurring question is whether the free license does enough. The standard download runs cues without restriction for basic audio playback and simple video. The moment a design needs more than two channels of audio output, video fades longer than a few seconds, or MIDI and OSC control, the limitations kick in. It is not a trial that expires, it simply locks the advanced routing, so a designer can build a workspace on one machine and know exactly what will break when it moves to an unlicensed Mac.

People also ask if QLab replaces a lighting console. It does not. It talks to them over MIDI, OSC, or network protocols, but the Light Library tools in version 5.6.3 are about patching and definition management within the workspace, not about generating DMX directly. The software cues lights by telling the desk what to do, not by becoming one.

Misconfigured Light Library rows now flag themselves in color

Version 5.6.3 shipped three fixes that matter more in a dark theater than they look on a changelog. The color shift for misconfigured rows in the Light Library and Light Definition editor means a designer scrolling through a hundred instruments can spot a bad entry without opening each one. Before this, a broken definition was a quiet failure that surfaced only when a cue misfired. Now the row lights up, and the Light Patch editor tags it with a Broken status so the problem travels with the workspace until someone clears it.

The migration for older workspaces using Right On Cue Services Stage|Tracks is less visible but no less useful. Spaces built in 5.6.2 or earlier that leaned on a manually configured network device definition now pull in the built-in definition automatically. That strips out one more thing that could drift between a designer's laptop and the venue machine during load-in.

The crash fix for stopping video playback is the kind of patch that nobody notices unless they have been burned by it. A rare timing collision on certain Macs could drop the app when a video cue halted mid-decode. With 5.6.3, that particular race condition is closed, so a show operator can slam a panic stop on a video wall without holding their breath.

Audio stays silent when output numbers don't match friendly names

The first headache for new users is audio routing that looks correct but stays silent. QLab assigns outputs by numbers that correspond to the Core Audio device channels, not to the friendly names the interface shows in System Settings. A workspace patched to Output 3 might be pointing at a subwoofer channel that the audio interface hasn't mapped to a physical speaker. The fix is to open the Audio Patch in the workspace settings, match each output number to the interface's channel list, and test each one with a short tone cue before importing the full sound design.

Video surfaces that flicker or drop frames during fades often trace back to the renderer, not the machine. Under Preferences, the Video tab lets the operator switch between the standard renderer and a Metal-accelerated path. On Apple Silicon Macs, Metal typically smooths things out. On older Intel machines with weaker GPUs, the standard renderer sometimes holds steadier. Testing both during a tech run costs five minutes and can save a dress rehearsal.

A subtler snag involves MIDI cues that fire but arrive too late. By default, QLab sends MIDI on the beat of its internal clock, but if the cue list is dense with fades and network triggers, the timing can drift. Moving MIDI triggers to their own cue list with a higher priority, or nudging the pre-wait on critical patch changes, tightens the sync without rewriting the whole show file.

Users who inherit a workspace from another designer sometimes find that Blackmagic live inputs show a black frame. The capture device needs to be connected and recognized by the system before QLab launches. Plugging it in after the app opens often leaves the video surface unregistered. Quitting, connecting the device, waiting for the macOS video daemon to pick it up, and then relaunching clears the fault almost every time.

Getting through the first days after installing

Start with a throwaway workspace. Build three audio cues, one video cue on a virtual surface, and a MIDI cue that sends a note to IAC Driver so nothing real is on the receiving end. Run the stack ten times while the Mac is connected to Wi-Fi, another ten times with Wi-Fi off, and note whether the timing shifts. This reveals whether Spotlight or iCloud processes will fight for resources during a show before any audience is in the room.

Second, set the default fade time for new cues to something short but visible, like half a second. The factory default is zero, which means a new cue fires instantly and can startle a speaker check. A small default fade gives the operator a moment to catch a misfire before the full level hits the PA.

Third, map the Undo habit early. QLab supports undo for most edits, but it does not protect against overwriting a cue number that another cue relies on. Rename cues with a system that includes a letter prefix for the department (A for audio, V for video, L for light) so that accidental renumbering doesn't create collisions that undo cannot reverse.

Fourth, build a safety cue list. Drop a single audio cue at negative infinity level that routes to every output in the patch. Label it SILENCE ALL and park it on a separate cue cart. If a feedback loop or a stuck video loop runs away mid-rehearsal, firing that cart kills everything without hunting for the source. A technician who learns that trick in the first week rarely gives it up.

Last, test the migration path if the workspace will travel between machines. Save a copy, open it on the second Mac, and check the patch for any orange rows or Broken statuses. The 5.6.3 color warnings make this faster than it was in older versions, but the habit of verifying the patch after a move prevents a dark stage on opening night.

QLab 5.6.3 makes two targeted fixes for lighting and workspace migration. The Light Library and Light Definition editor now tint rows with a distinct color when an instrument definition contains a configuration error. Workspaces saved in version 5.6.2 or earlier migrate correctly to the built-in network device definition for Right On Cue Services Stage|Tracks.

• macOS 11 or later
• Apple Silicon or Intel Mac
