Wirecast Pro 16.5.4 Mac

Anyone who has built a scene in OBS knows the basics: you stack sources, set up transitions, and push a feed to the web. Wirecast Pro picks up where that free tool leaves off, adding the kind of broadcast polish a production studio relies on. The current version, 16.5.4, streams and records everything from conference interviews to music shows, with deeper hardware integration and ready-made graphics that cut hours out of post-event editing.

Graphics and overlays built for the control room

• 30 title and caption styles ship with the application, covering lower-thirds, scoreboards and name straps without touching an external editor.
• Overlay templates pull in live data, so a sports score, speaker name or time-of-day clock updates on air rather than in a graphics department.

Camera and source handling that fits a studio rack

Small TV stations and production houses often run Wirecast because it sees NDI sources natively. The 16.5.4 update fixed a detection problem with certain PTZ NDI cameras on macOS, and added a discontinuous-frame flag for NDI feeds — the sort of fix that matters when a pan-tilt camera suddenly disappears from the switcher five minutes before a live hit. Virtual camera output also received attention, now working reliably when corporate IT policies block the virtual microphone driver.

Cabling the Mac and canvas setup forty minutes before air

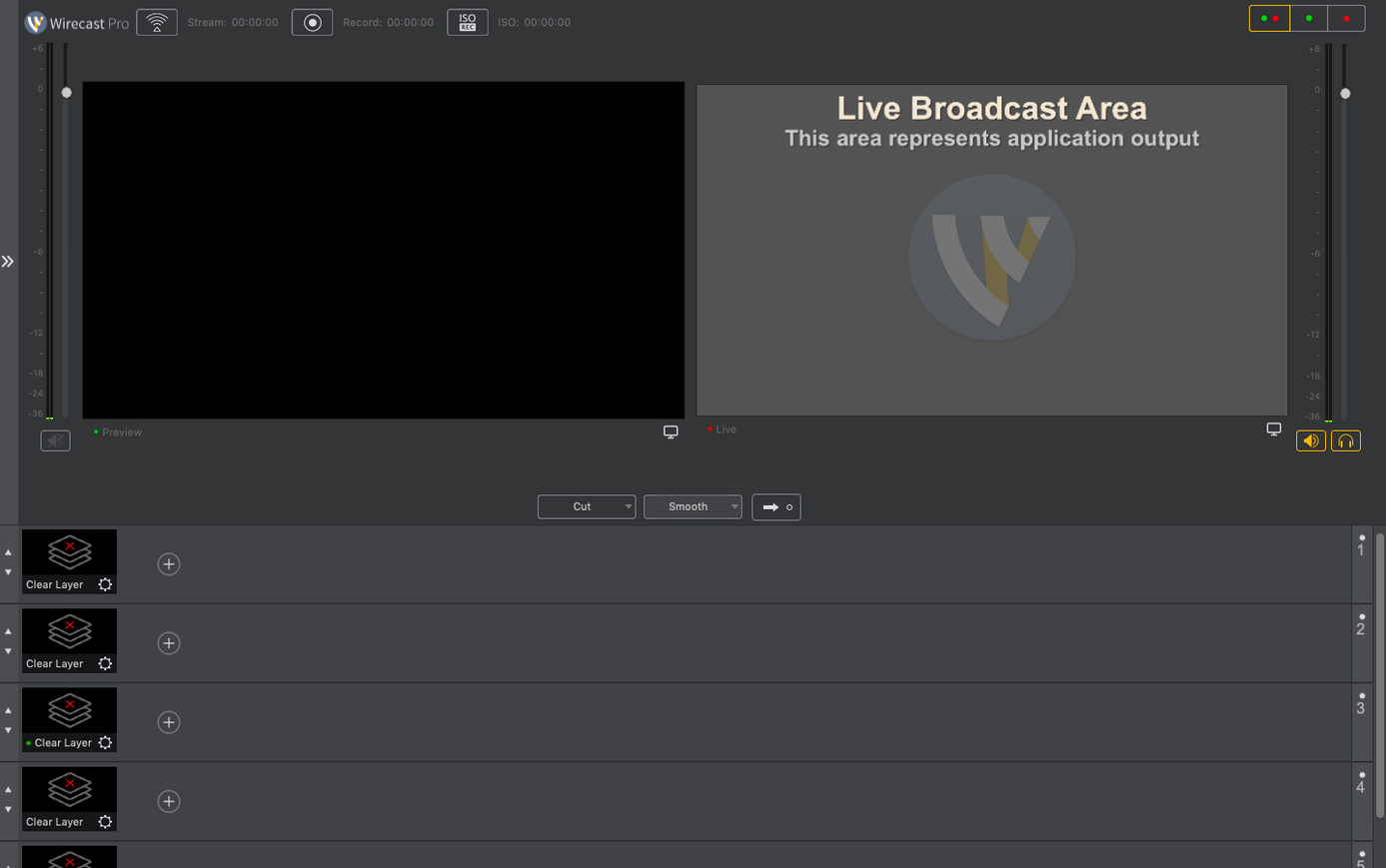

You arrive forty minutes before the stream. The Mac is already cabled to two PTZ cameras over NDI and a Blackmagic capture card carrying the presenter's slides. You launch Wirecast Pro and the canvas fills with the default shot — usually a black frame or the last scene you left open. First job: confirm the cameras are alive. You switch to shot two, wiggle the PTZ controls, and watch the feed respond. The 16.5.4 build means the NDI cameras actually show up this time; earlier weeks involved restarting the network bridge twice before they appeared.

Next you load the broadcast template you built yesterday. Titles pop onto the master layer, a lower-third with the guest's name sitting in the preview bus. You click through each scene — wide shot, close-up, slides-only, two-box with host and remote caller — and check that every source is assigned. The audio mixer shows levels from the house board coming in on channels one and two. You tap the headphones and ask the sound engineer to send tone. Meters flicker. Good.

Ten minutes to air. You open the social media comment overlay and type a test message into the text field. The caption appears on the program monitor almost instantly, no rendering delay. You delete it and replace it with the show hashtag. The producer leans over, asks for a countdown clock. You drag the built-in clock widget onto the master layer and set it to count down from two minutes. It appears in the corner, ticking.

At two seconds you hit the stream button. The red "On Air" indicator lights up. You watch the bitrate settle, then ride the fader into the wide shot. The show is live.

A single overloaded shot layer bypasses the program bus

The most common early mistake is piling every source onto a single shot and hoping the auto-switcher handles the rest. Wirecast is not a smart director; it broadcasts exactly what you put on the program bus. If you stack a logo, a camera and a title all onto shot one without layering them in the shot editor, you get a mess. Build your shots one at a time, then use the switcher to move between them.

Another frequent stumble involves NDI discovery. Beginners often plug cameras into a different network subnet than the Mac and wonder why nothing appears. Wirecast finds NDI sources on the local subnet by default. If your studio network segments video traffic onto a separate VLAN, you need to add NDI sources by IP address, not wait for auto-detection. The 16.5.4 discontinuous-frame flag helps here — when a camera drops and reconnects mid-show, the feed resumes without a frozen frame hanging on screen.

Audio routing is the third landmine. New users drag a video source in and assume the audio comes with it. Wirecast separates audio from video by design. If you pull a camera feed onto the canvas and hear nothing, check that the audio track is assigned in the mixer panel. Also watch for duplicated audio paths: a USB microphone connected directly to the Mac can arrive twice if it also passes through an NDI stream from another machine.

Point ProRes recordings at a dedicated external drive first

Open Preferences and head straight to the Advanced tab. The default disk recording location is usually the system drive, which fills up fast during a two-hour ProRes capture. Point it at a dedicated external drive with plenty of headroom. While you are there, set the recording format to match your post-production workflow — ProRes LT for interviews you will edit later, or H.264 for quick uploads that skip the edit suite entirely.

Switch to the Playback settings. Enable "Auto-live" only if you want Wirecast to start streaming the moment it opens. Most users should leave this off. Accidental broadcasts happen. Instead, check "Show confirmation on quit" so a muscle-memory Command-Q does not kill a live feed.

In Output Settings, match the streaming encoder to your upstream bandwidth, not your connection's theoretical maximum. A common trap: setting the bitrate to 10 Mbps because the fibre line can handle it, then dropping frames because the CDN re-encodes everything anyway. For a standard 1080p stream to YouTube or Twitch, 6–8 Mbps with a two-second keyframe interval gives clean motion without buffering complaints from viewers.

Finally, open Keyboard Shortcuts and map your three most-used shots to single keys. Switching shots with a keystroke is faster than mousing across the interface, especially when a guest finishes a point and you need the close-up immediately.

A complete workflow: two-camera interview with remote caller

This setup runs one wide shot, one close-up camera, a screen-share feed from a remote guest via NDI, and a branded background plate. The output goes simultaneously to a streaming platform and a local recording.

Start by creating five shots. Shot one is the wide camera alone. Shot two is the close-up camera with a lower-third title template containing the guest's name and title. Shot three is the remote caller's screen share, scaled to fill the frame. Shot four is a two-box layout: host close-up on the left, remote caller on the right, separated by a thin branded divider. Shot five is the background plate with a looping logo animation, used for breaks.

Assign the lower-third title to shot two by dragging the title source into the shot editor below the camera layer. Type the guest's information into the title's text fields. Set the animation to slide in from the bottom over twelve frames. Do not leave the title permanently visible on the wide shot — the producer wants it only on close-ups.

Pull the remote caller into Wirecast as an NDI source. Confirm the audio appears on its own mixer channel. Add a slight delay — about 80 milliseconds — to the local camera audio so lip sync stays tight with the remote feed, which always arrives late. This adjustment lives in the audio mixer under the gear icon for the local microphone channel.

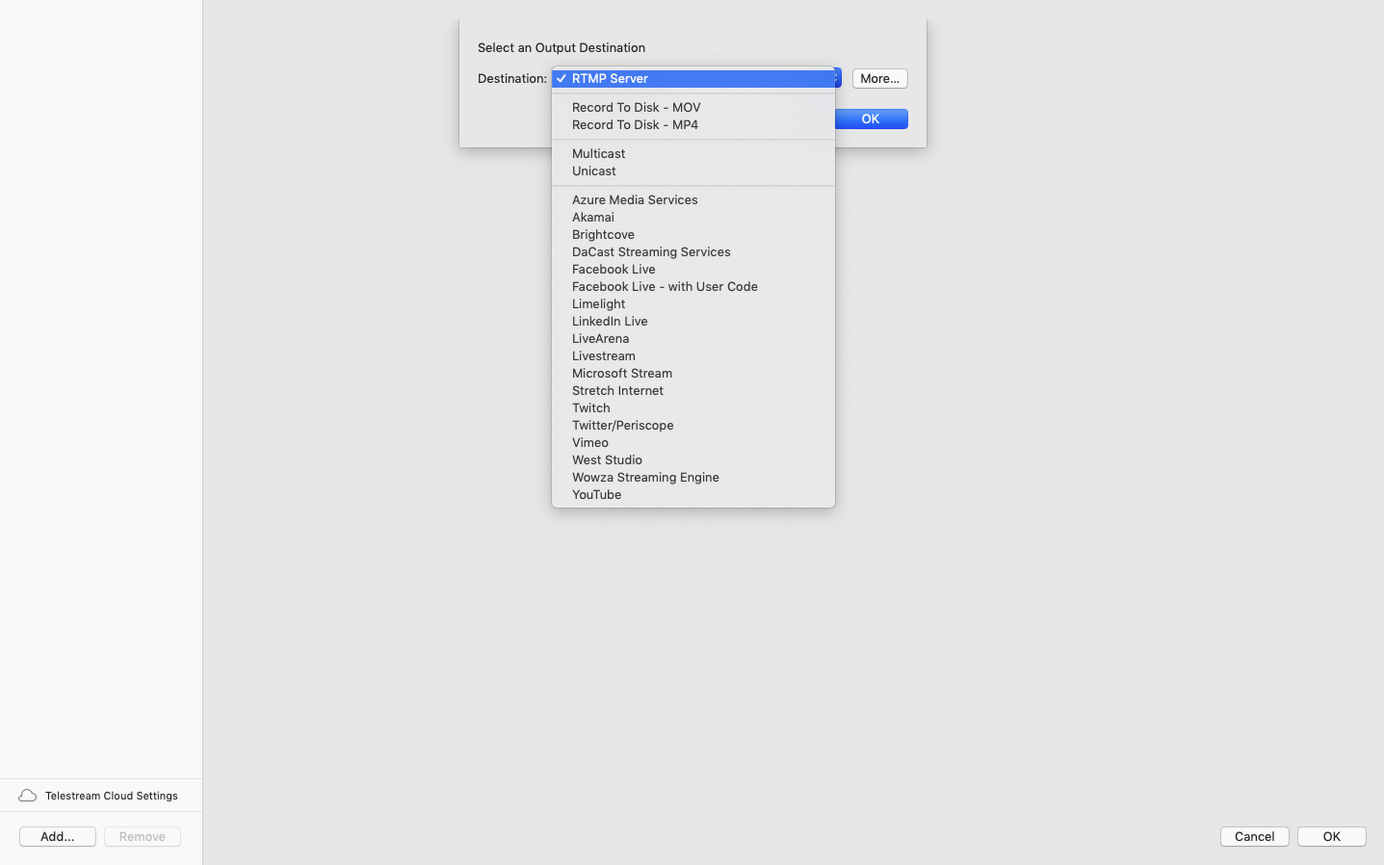

Dial in the streaming destination. Open the Output Settings, select your platform from the preset list, and paste the stream key. Add a second output destination for the local recording, set to ProRes LT at the canvas resolution. Check "Include audio" on both outputs.

Run a one-minute test recording. Play it back and look for dropped frames, audio drift, or title timing issues. Fix those now. When the show starts, ride shot one for the host introduction, cut to shot two when the guest begins speaking, and transition to shot four with a dissolve when the remote caller joins. During breaks, dissolve to shot five. At the end, stop the stream and let the local recording finalise. The ProRes file lands on the external drive you specified in Preferences, ready for the editor.

The 16.5.4 release corrects detection of certain PTZ NDI cameras on macOS, a bug that had left those sources invisible to the switcher. It also fixes virtual camera output when a corporate IT policy blocks the virtual microphone driver, and adds a discontinuous-frame flag for NDI sources to improve stream stability.

• macOS 11 or later
• Intel or Apple Silicon Mac
• 64-bit application
