Cadintosh X 8.9.2 Mac

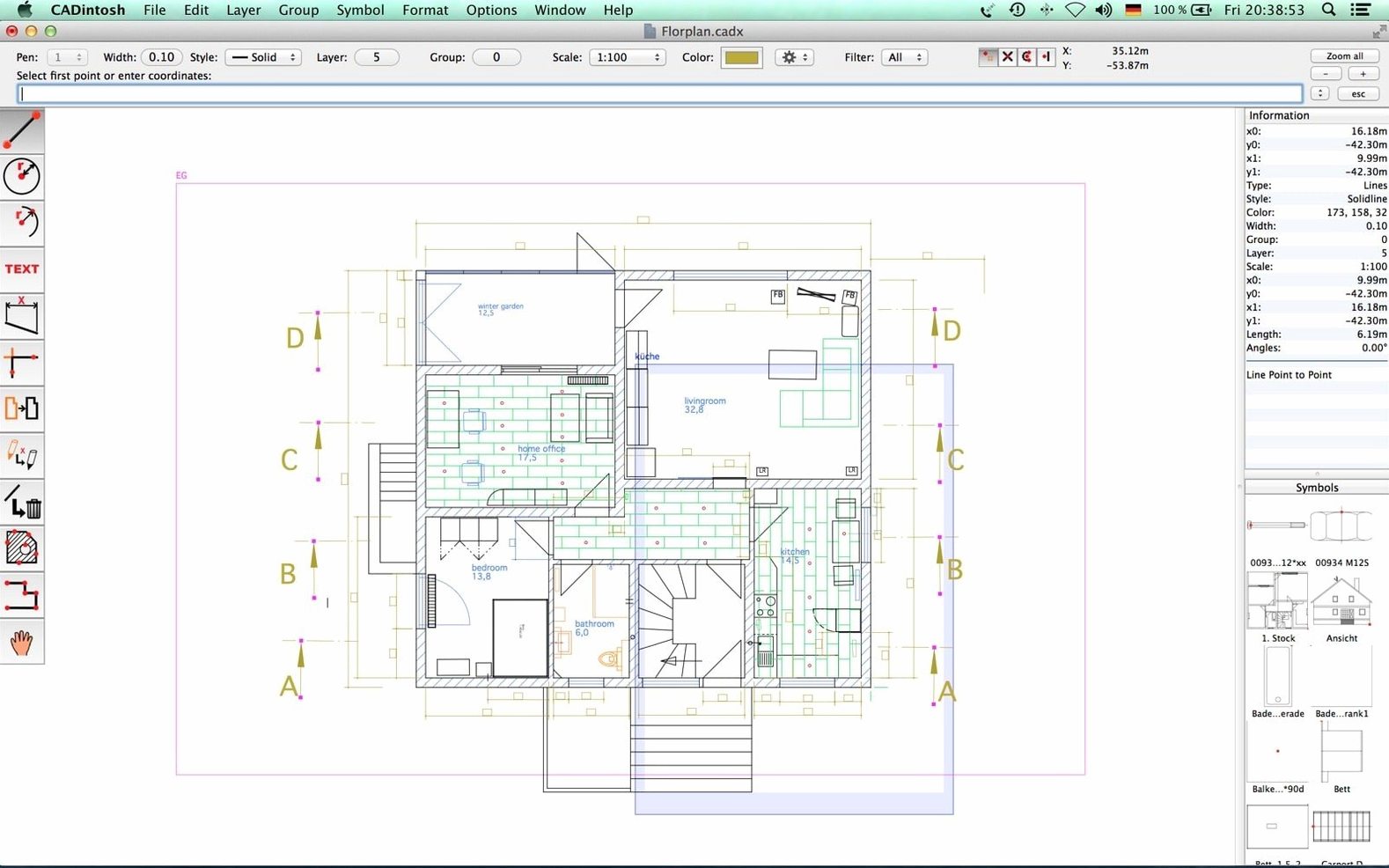

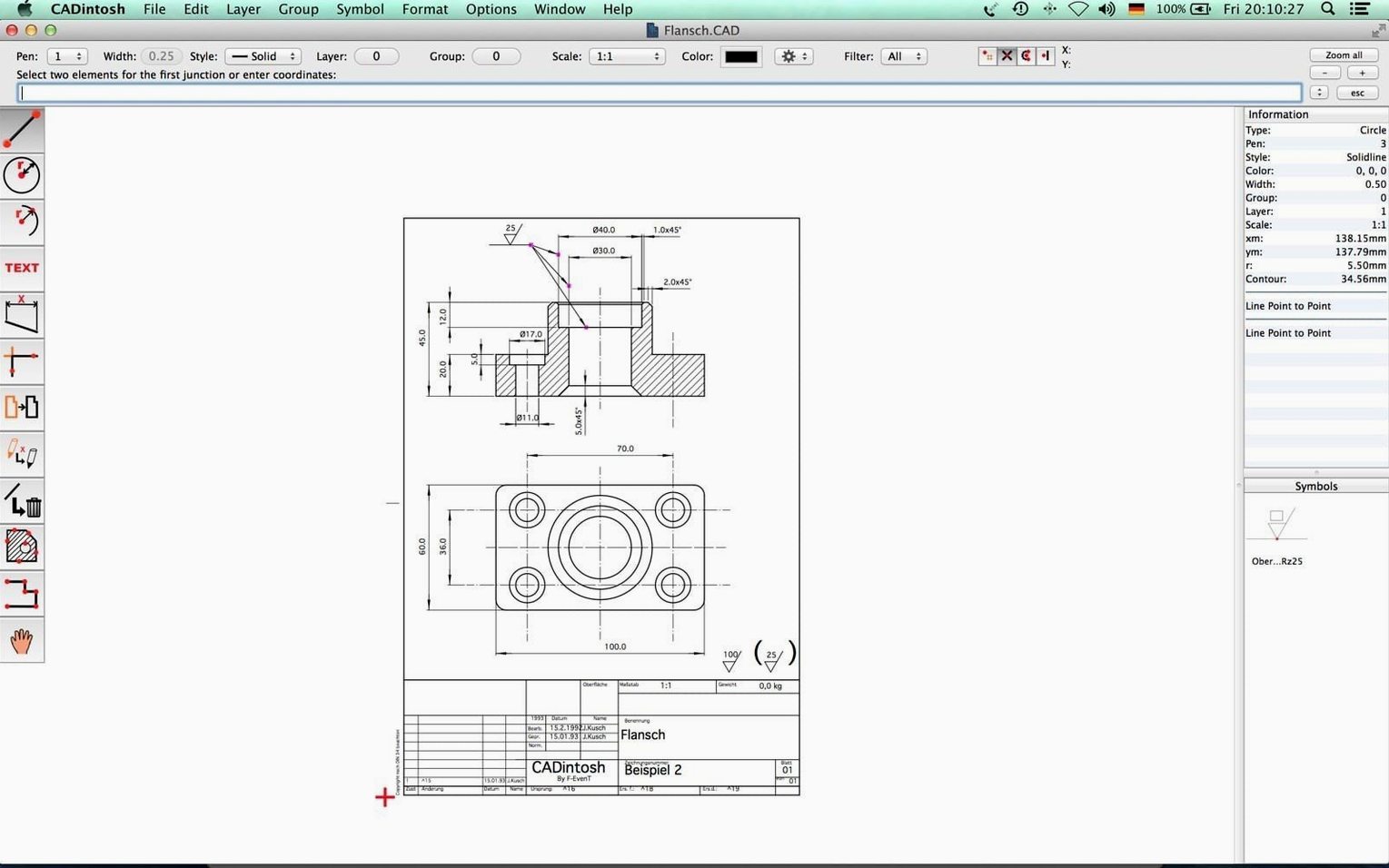

Technical draftsmen and designers who work on the Mac often keep one eye on precision and the other on how a tool fits alongside the rest of their software. Cadintosh X steps into that space as a focused 2D CAD program, built around a single-window layout that avoids the floating-palette clutter some drafting apps bring with them.

The drawing engine covers the essentials lines, circles, dimensions, hatch fills, and X lines without pushing into 3D territory. Six line types are available: solid, dashed, chain, dash-dot, zigzag, and short dashed. A custom mode lets you dial in line widths anywhere from 0.0 to 99.99 mm, which matters when a drawing has to speak clearly across different plot scales or when a client's standards call for an unusual stroke weight.

Symbol libraries handle reusable components, and the app supports both importing and exporting symbols, so blocks created here can travel to other systems and vice versa. Units switch between metric and imperial, placing inches alongside millimeters where a project demands it. The package includes a tutorial for new users, and the interface speaks eight languages: Brazilian Portuguese, Danish, English, French, German, Italian, Japanese, and Spanish.

The current release tidies up a few corners for macOS Tahoe. The application icon has been refreshed, dialogs follow the newer system look, and older CAD drawings carrying embedded PICTs now decode wherever the data is still intact. For a draftsman who already relies on a Mac for documentation, email, and light image work, Cadintosh X slots in as the drafting board that stays in one window and stays out of the way.

Dumping dimensions and hatch fills onto one layer

New users often treat the single-window layout as an invitation to cram everything onto one layer. A drawing with dimensions, hatch fills, construction lines, and title-block elements all sitting on layer zero turns into a puzzle the moment edits are needed. The app supports up to 1,024 layers and 32,000 groups, so separating dimensions from geometry and annotation from hatching costs nothing upfront but saves rework later.

Another trap is ignoring the eight handles that control line width and color independently. A beginner will reach for the custom line-width field and dial in a value for every new element, rather than setting up a few named handles once and assigning them as they draw. When the project lead asks for thicker section outlines a week later, the handle approach means one edit instead of hunting through fifty individual lines.

The DXF import trips newcomers as well. Dropping a file in without checking the unit scale leaves a drawing that looks correct on screen but measures wrong the moment someone runs a dimension tool. Switching the unit preference to match the source file before import avoids rescaling headaches, and the same principle applies in reverse when exporting to a shop that works in imperial while the original was drawn in metric.

A marine fabricator’s afternoon

A canvas-shop draftsman opens a dodger pattern sent by a boatyard as a rough DXF. The file lands with lines assigned to a single layer and no dimensions, the kind of starting point that used to mean redrawing half of it. He pulls it into Cadintosh X, splits the port and starboard profiles onto separate layers, then drops in a few construction circles to locate the grab-rail cutouts that the pattern sketch left vague.

Because the shop’s cutting table runs on imperial measurements, he switches the unit display to inches before adding the dimension strings that the sewing floor will actually read. A short-dashed line marks the fold allowance, and a handful of symbols from his own library—a snap fastener, a zipper stop, a webbing loop—snap into place. The whole file exports as a clean PDF for the job jacket and a DXF for the plotter, all from the same single-window workspace. Nothing in the workflow asks for a 3D model; it just needs lines, clear callouts, and a format the next person down the line can open.

Version 8.9.2 carries a handful of refinements aimed at macOS Tahoe. The application icon has been updated to match the current system style, and the dialog layout sees similar polishing. On the compatibility side, older CAD drawings that contain embedded PICTs are now decoded when possible, recovering content from legacy files that might otherwise have been unreadable.

• macOS 10.13 or later
• Intel or Apple Silicon Mac
• Approximately 70 MB of disk space
