DriveDx 1.12.1 Mac

DriveDx runs on any Mac with macOS 10.9 Mavericks or later, including Apple Silicon machines and the latest macOS Sonoma release. It brings enterprise-style drive diagnostics to a single utility window.

Checking a drive from start to finish

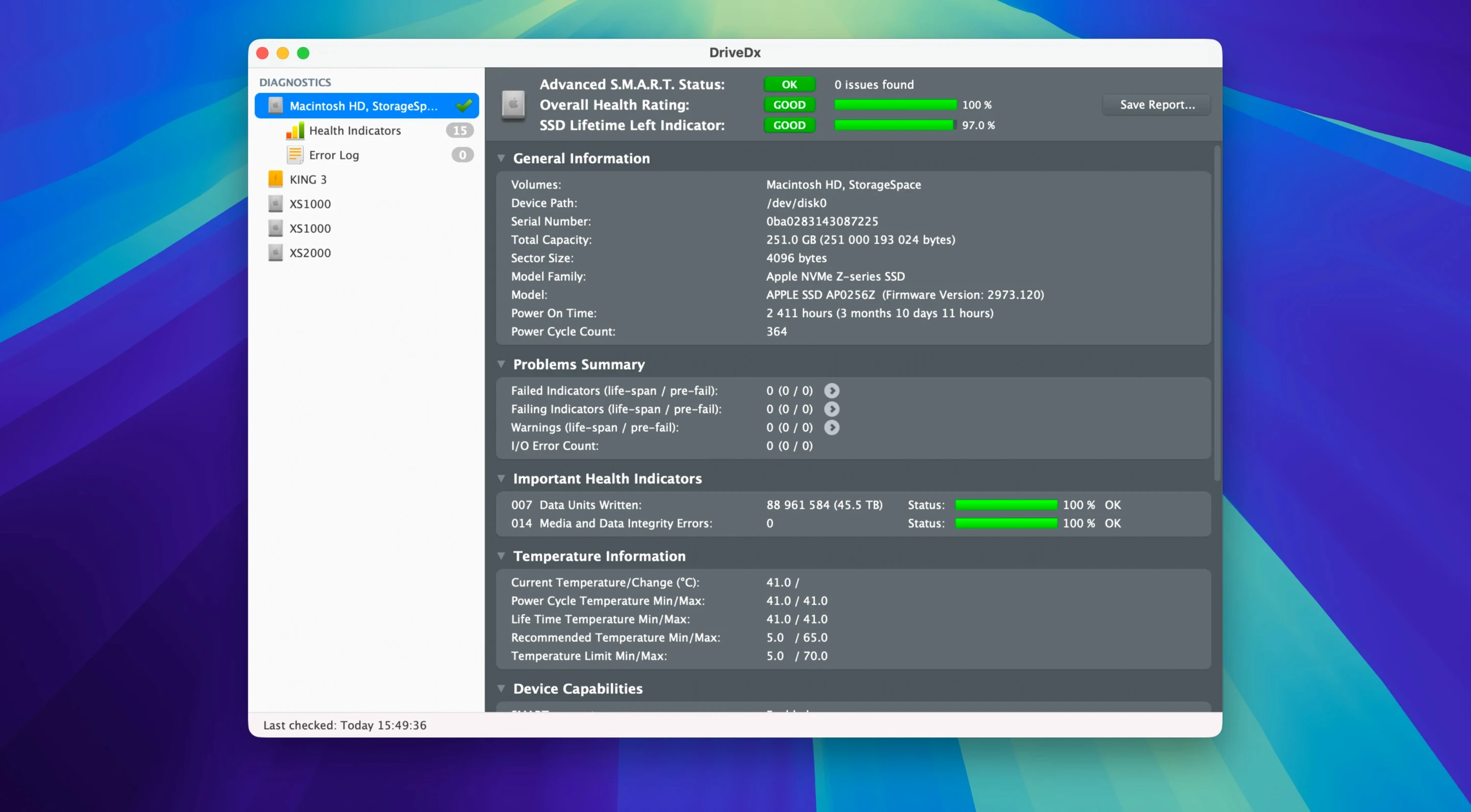

1. Launch DriveDx. The main window lists every connected internal and external drive, each with a color-coded health status.
2. Select the drive you want to examine. The app immediately reports key indicators: overall health rating, performance rank, and lifetime percentage used for SSDs.
3. Scroll to the Drive Health Indicators table. Look for reallocated sectors, pending bad sectors, and I/O errors — early warning signs DriveDx flags before macOS reports trouble.
4. Click the Self-Test button in the toolbar. Choose a short self-test for a quick scan or a full self-test to examine the entire drive surface.
5. Watch the results panel. If a test returns warnings or failures, DriveDx explains what the code means for that specific drive model.

DriveDx works by continuously tracking SMART attributes and applying heuristic algorithms tuned per drive family. Version 1.12.1 refined those algorithms and added improved support for Patriot P200 SSDs, making failure predictions more precise on those drives. The app distinguishes between OK, warning, failing, and failed states, so you see a problem developing before it becomes data loss.

Launching only to check the green badge skips its constant background watch

New users often treat DriveDx like a one-time scanner — they launch it, glance at the green "OK" badge, and close it until something feels wrong. That misses the point entirely. DriveDx is built for continuous monitoring, and the background diagnostic engine is where most of its value lives. Checking a drive once a month is better than never, but it won't catch the slow creep of reallocated sectors over a weekend.

Another common slip: ignoring the Warning state. A drive that flips from OK to Warning hasn't failed yet, and users sometimes assume they have plenty of time. Drives can degrade fast once SMART indicators start shifting — one pending bad sector can multiply in days. The notification system in version 1.12.1 uses updated health-change thresholds specifically to catch these transitions earlier, but only if users let it run.

People also overlook external drives. The main window shows everything at once, and it's easy to focus on the internal SSD while an external backup drive quietly accumulates I/O errors. DriveDx monitors all connected drives equally, but it can't force anyone to look at the results. Set up periodic checks for every drive you care about, not just the boot volume.

Click any column header to surface the worst raw error counts instantly

The drive health indicators table supports sorting by clicking any column header. Click once on "Raw Value" to see which SMART attributes have the highest raw error counts, or sort by "Status" to group all Warning-level items together. This is faster than scrolling through dozens of attributes looking for trouble.

Right-clicking any drive in the sidebar reveals a quick menu with self-test options, bypassing the toolbar entirely. The same menu lets you save a diagnostic report as a plain text file — useful when comparing drive state week over week, or when someone on a forum asks "what do these numbers mean" and you need to share exact values.

The self-test button dims automatically when a drive doesn't support testing. No error dialog appears, no guesswork required. And if you start a full self-test on a large spinning drive, the estimated completion time shows in the progress panel — those tests can run for hours, and knowing the timeline helps you plan around it.

DriveDx stores historical SMART data between sessions. Return to a drive after a few weeks and the trend is visible: a reallocated sector count that sat at zero for months and now shows three, even if the overall status still reads OK, signals that something is changing inside the enclosure.

It reads drive telemetry one layer beneath Disk Utility’s file system repairs

DriveDx doesn't replace Disk Utility — it complements it. Disk Utility handles formatting, partitioning, and First Aid repairs to file system structures. DriveDx operates one layer below that, reading the drive's own internal health telemetry before the file system even knows something is wrong. A drive can pass First Aid with no errors while its SMART data shows mounting physical problems. Running both tools gives a complete picture.

The notification system ties into macOS Notification Center, so alerts about a degrading drive appear like any other system alert. Users who pair DriveDx with backup utilities such as Carbon Copy Cloner or Time Machine get an early-warning chain: DriveDx flags the drive, Notification Center delivers the alert, and the backup software is already positioned to preserve the data before the drive fails outright.

For Macs running virtualization software like Parallels Desktop or VMware Fusion, DriveDx can monitor the physical host drives that hold virtual machine images. VM disk activity generates real I/O on the underlying SSD or hard drive, and that wear shows up in DriveDx just like any other workload. The app also reads SMART data from drives in external USB and Thunderbolt enclosures, provided the enclosure's bridge chip passes SMART commands through — a limitation of the hardware, not the software.

Apple's built-in S.M.A.R.T. checking in System Information reports a basic verified or failing status. DriveDx expands that single line into dozens of attributes with thresholds, raw values, and interpreted health states. Version 1.12.1 added refined heuristics that go beyond generic SMART interpretation, factoring in drive family behavior patterns that a simpler tool cannot match.

How DriveDx compares with similar Mac utilities

DriveDx vs. SMART Utility. SMART Utility by Volitans Software covers similar ground — both read SMART attributes and present health summaries. The difference lies in the heuristics layer. DriveDx applies per-drive-family algorithms to interpret raw SMART values, while SMART Utility leans more on presenting the raw data and letting the user interpret it. DriveDx also separates health states into four tiers (OK, Warning, Failing, Failed), which gives an earlier signal than a binary pass/fail model. If you want a detailed spreadsheet of SMART numbers, SMART Utility delivers it cleanly. If you want the software to tell you what those numbers mean for your specific drive model, DriveDx goes further.

DriveDx vs. Disk Drill S.M.A.R.T. monitoring. Disk Drill includes basic S.M.A.R.T. status display as part of its broader data recovery toolkit. The monitoring is a side feature, not the main event. DriveDx dedicates its entire interface to drive diagnostics: detailed attribute tables, historical tracking, self-test triggering, and configurable background checks. Disk Drill's SMART section works for a quick look. DriveDx works for ongoing surveillance across multiple drives with notifications that arrive before recovery software becomes necessary.

DriveDx vs. Drive Genius. Drive Genius offers drive testing, repair, defragmentation, and repartitioning tools — it's a multi-tool, where DriveDx is a specialist. For a user who wants one utility that handles everything from bad sector scanning to volume resizing, Drive Genius covers more ground. For someone who already has partitioning and repair workflows in place and wants the deepest possible pre-failure warning system, DriveDx's focused approach with heuristic predictions and model-specific monitoring fills that role without the overlap.

Version 1.12.1 is a maintenance release now fully compatible with macOS Sonoma. The driver installer no longer requires Rosetta 2 on Apple Silicon Macs. Drive diagnostic algorithms and heuristics saw improvements, and support for Patriot P200 SSDs was strengthened.

• macOS 10.9 Mavericks or later
• Intel and Apple Silicon Macs
